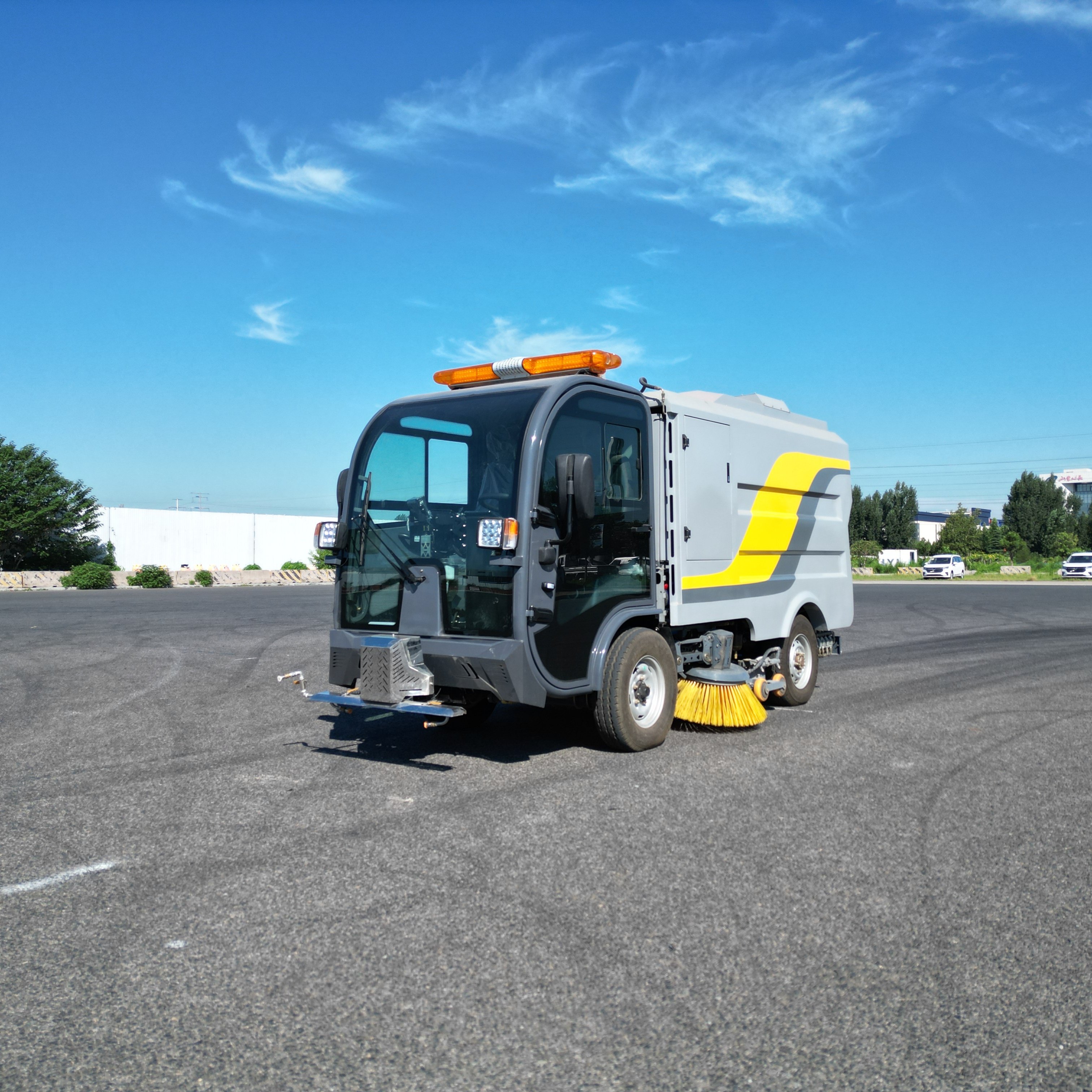

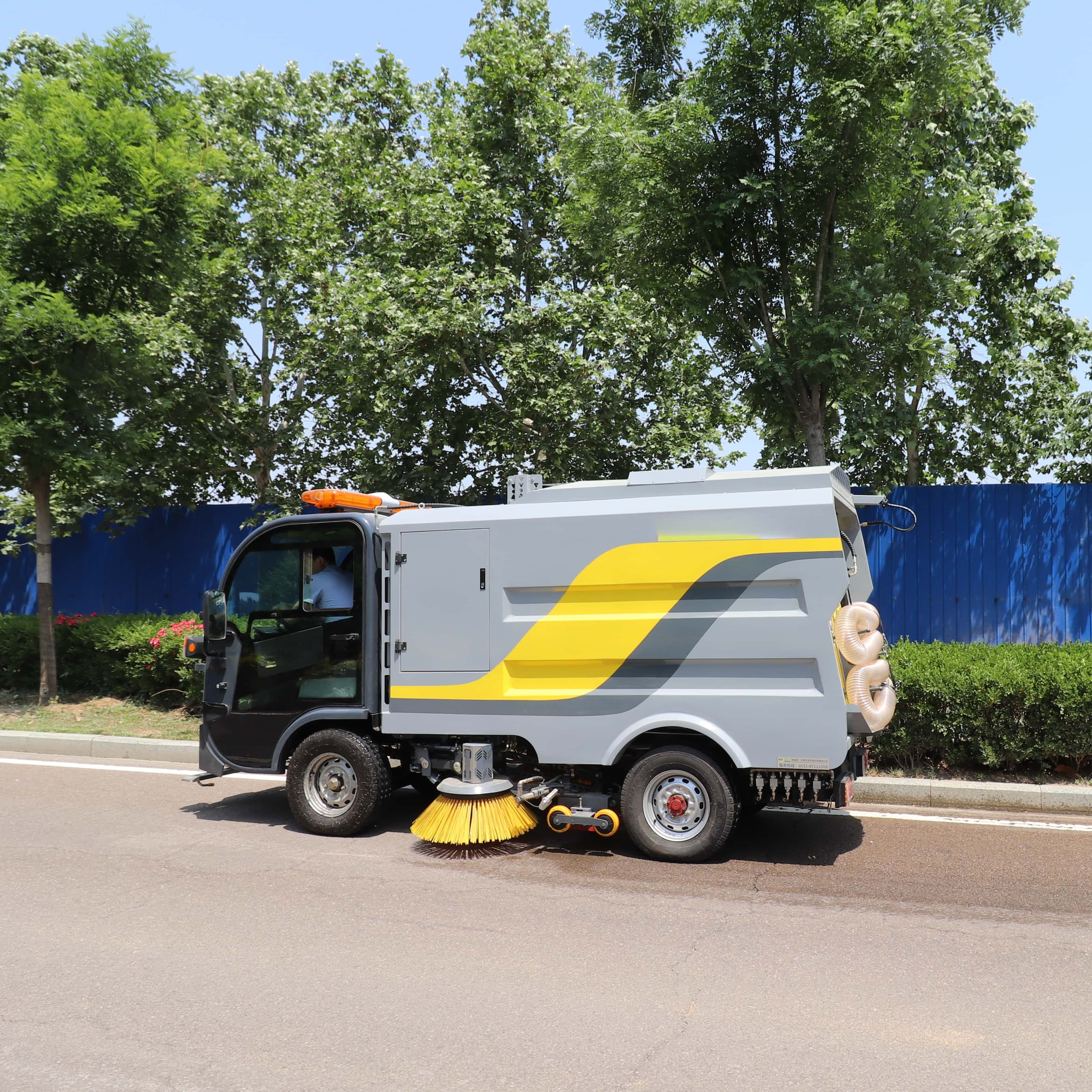

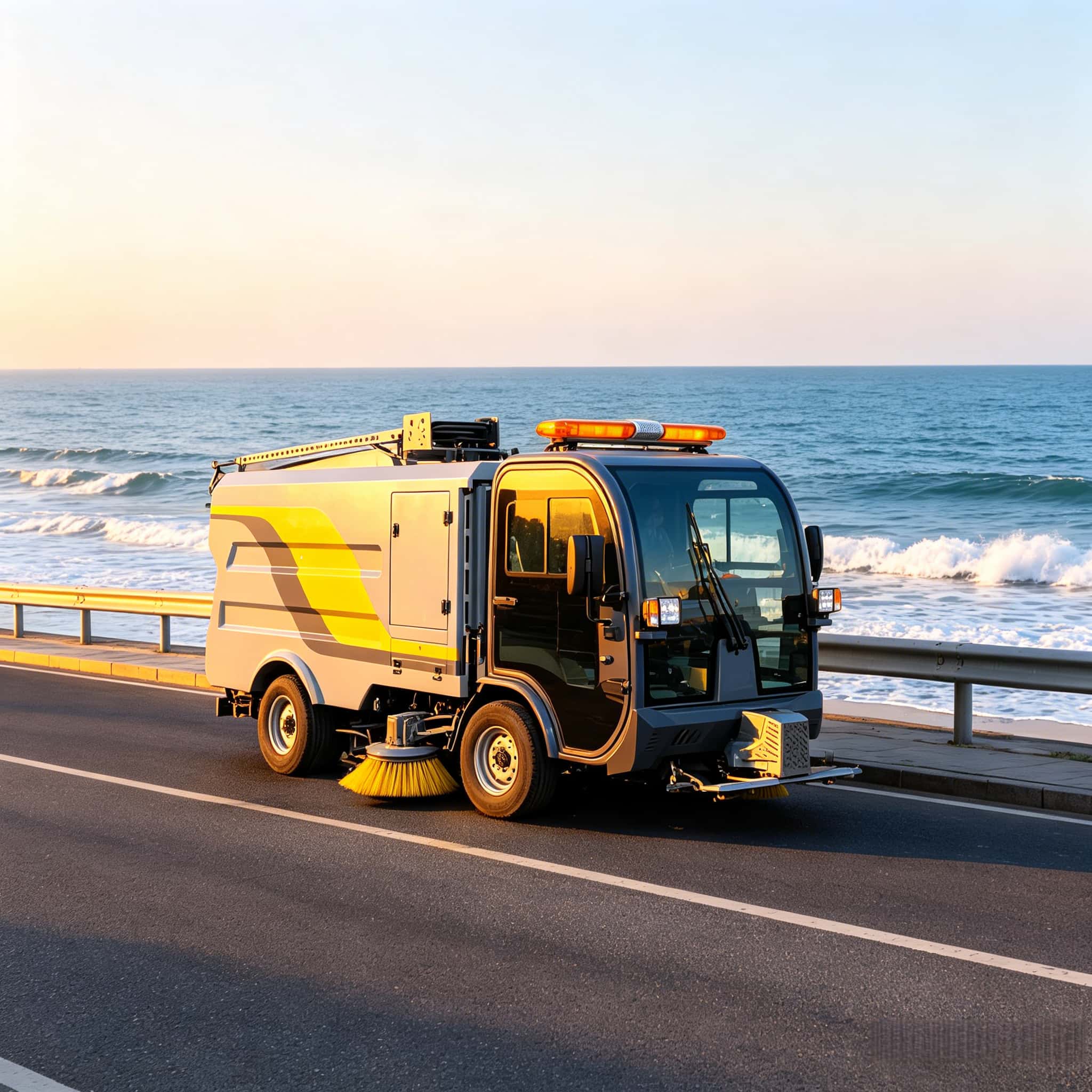

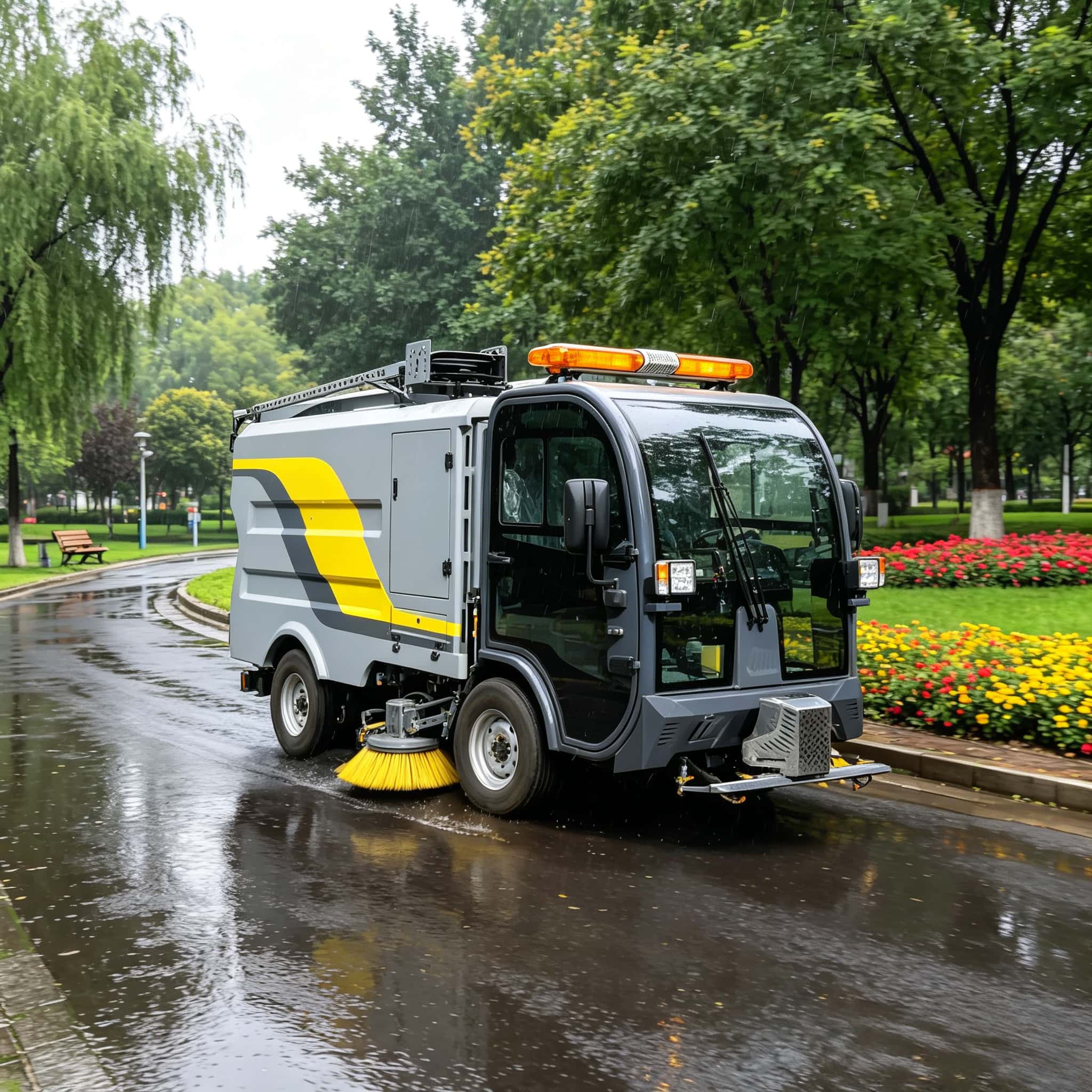

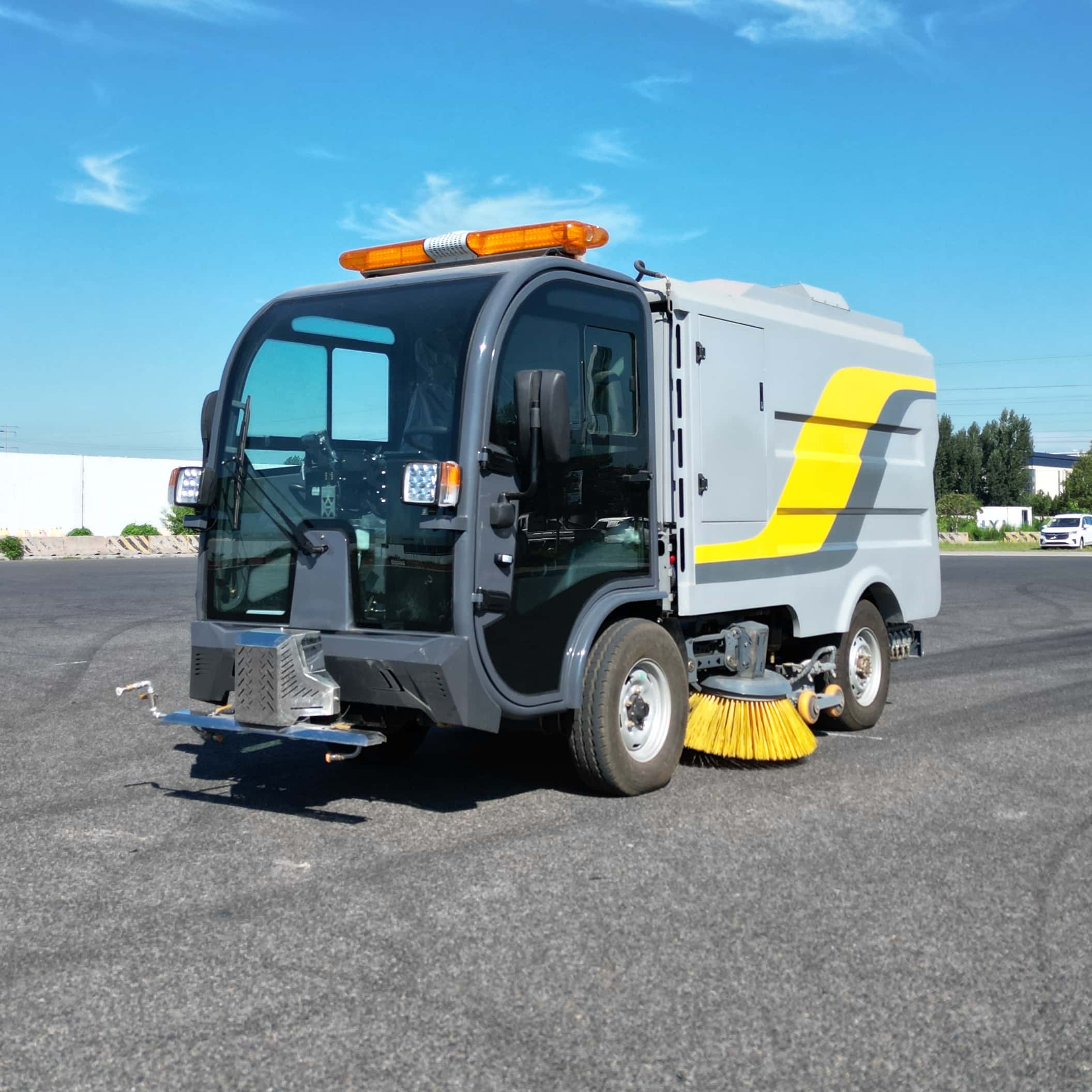

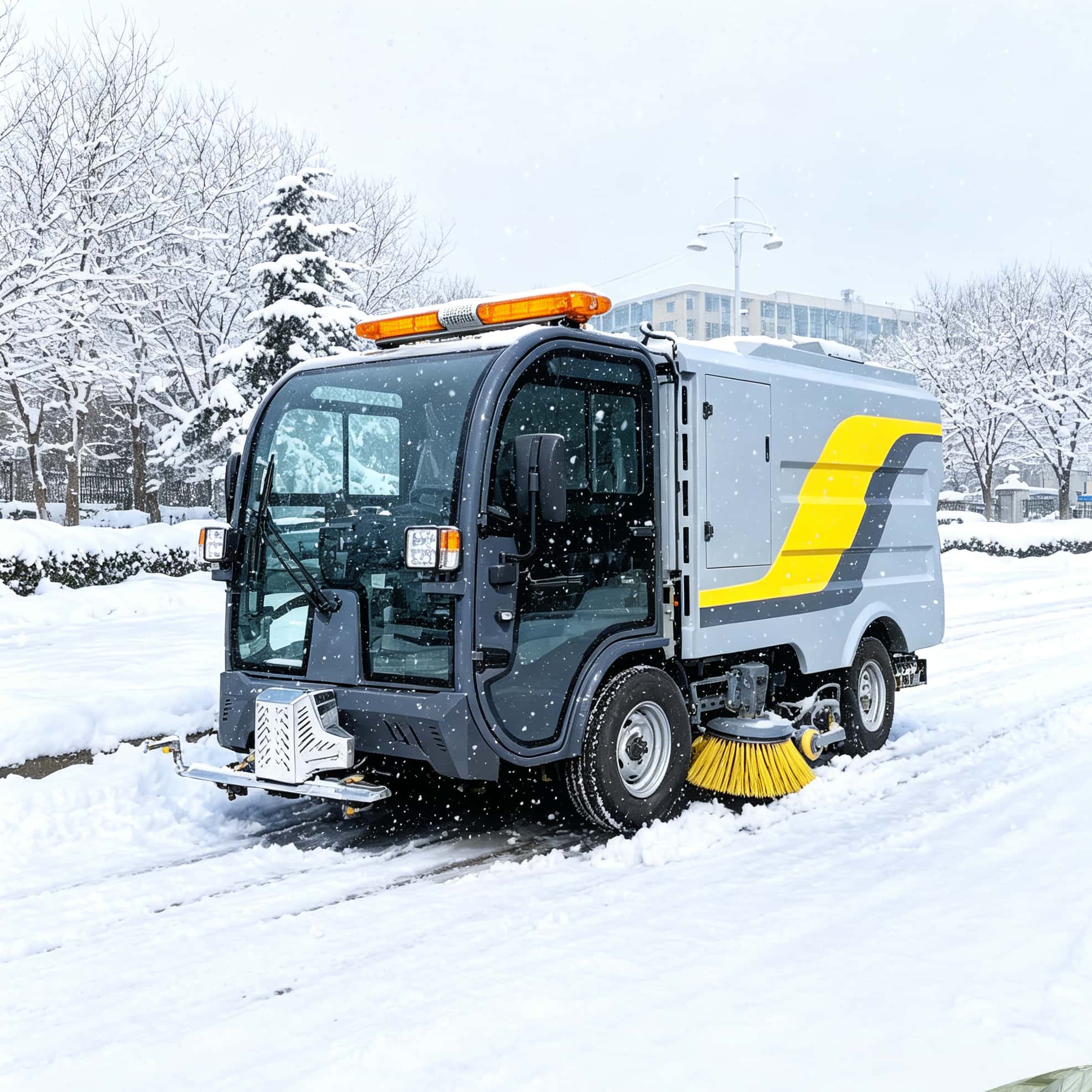

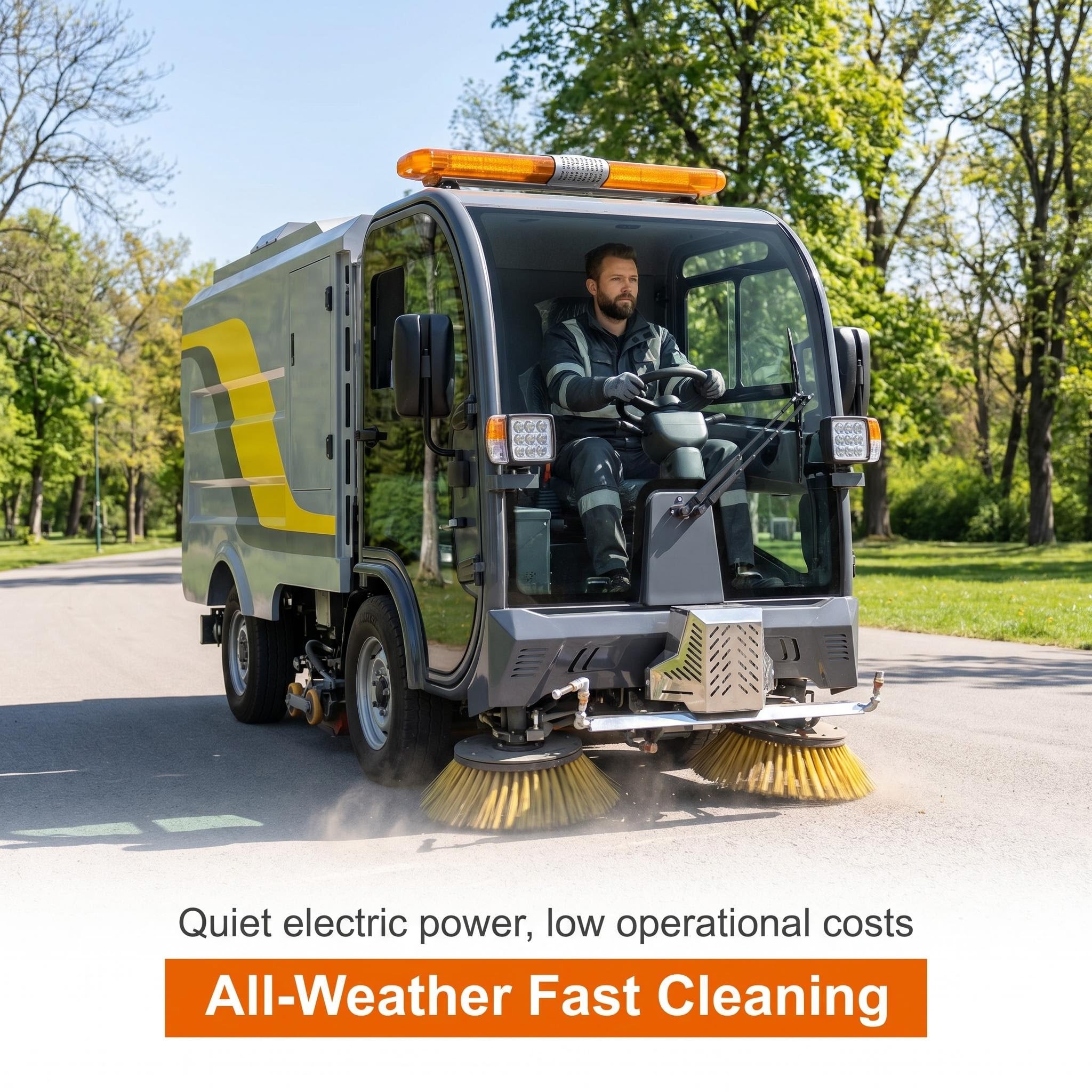

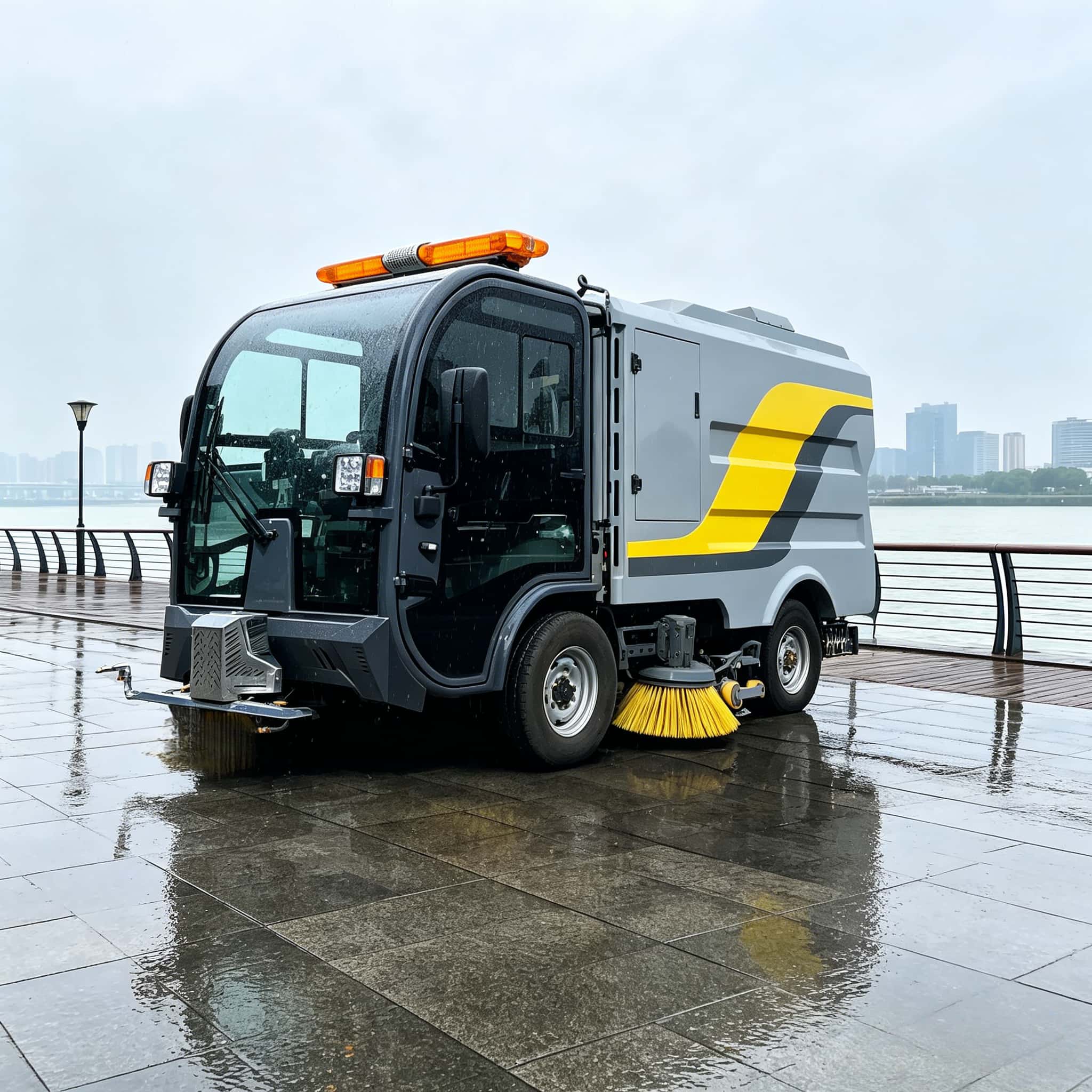

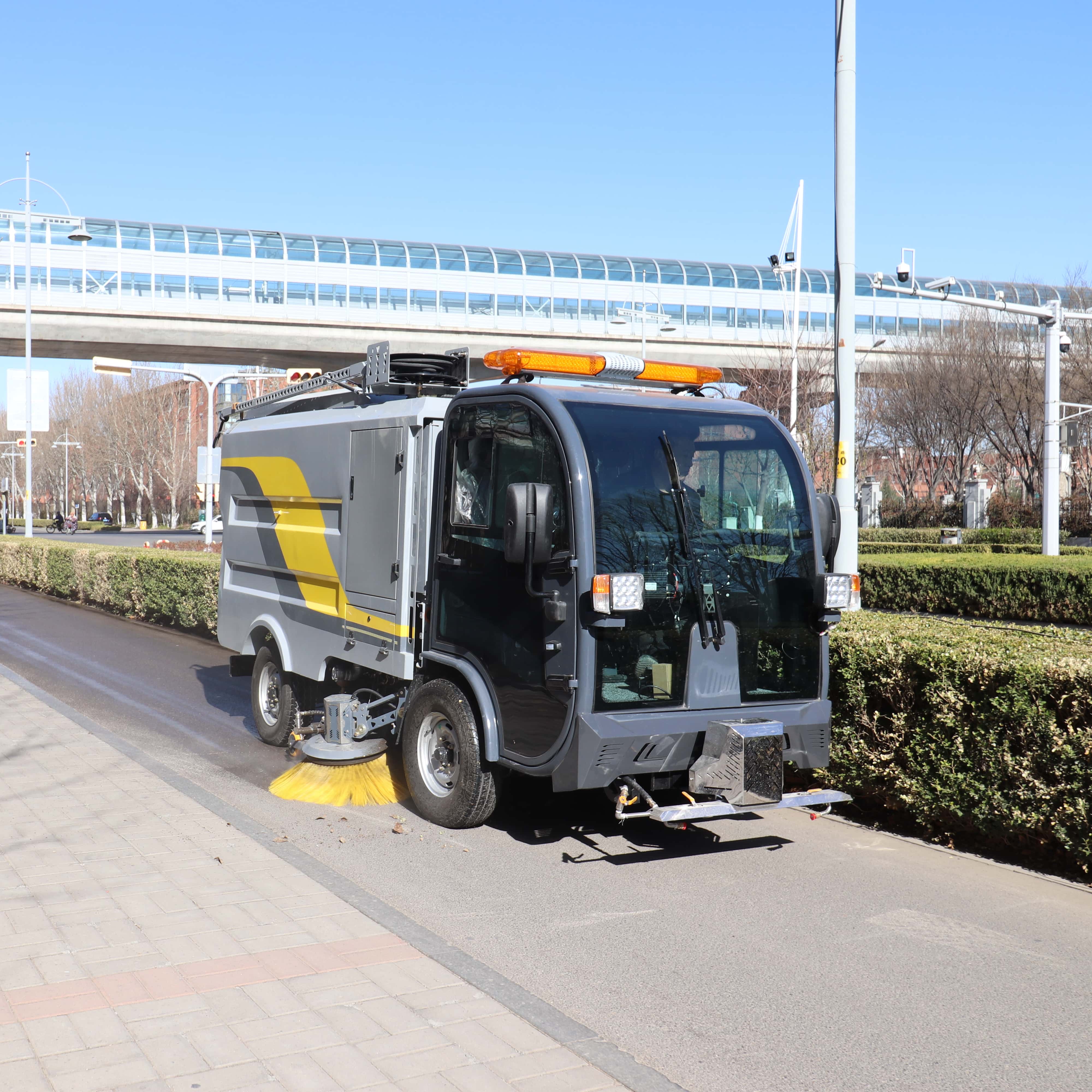

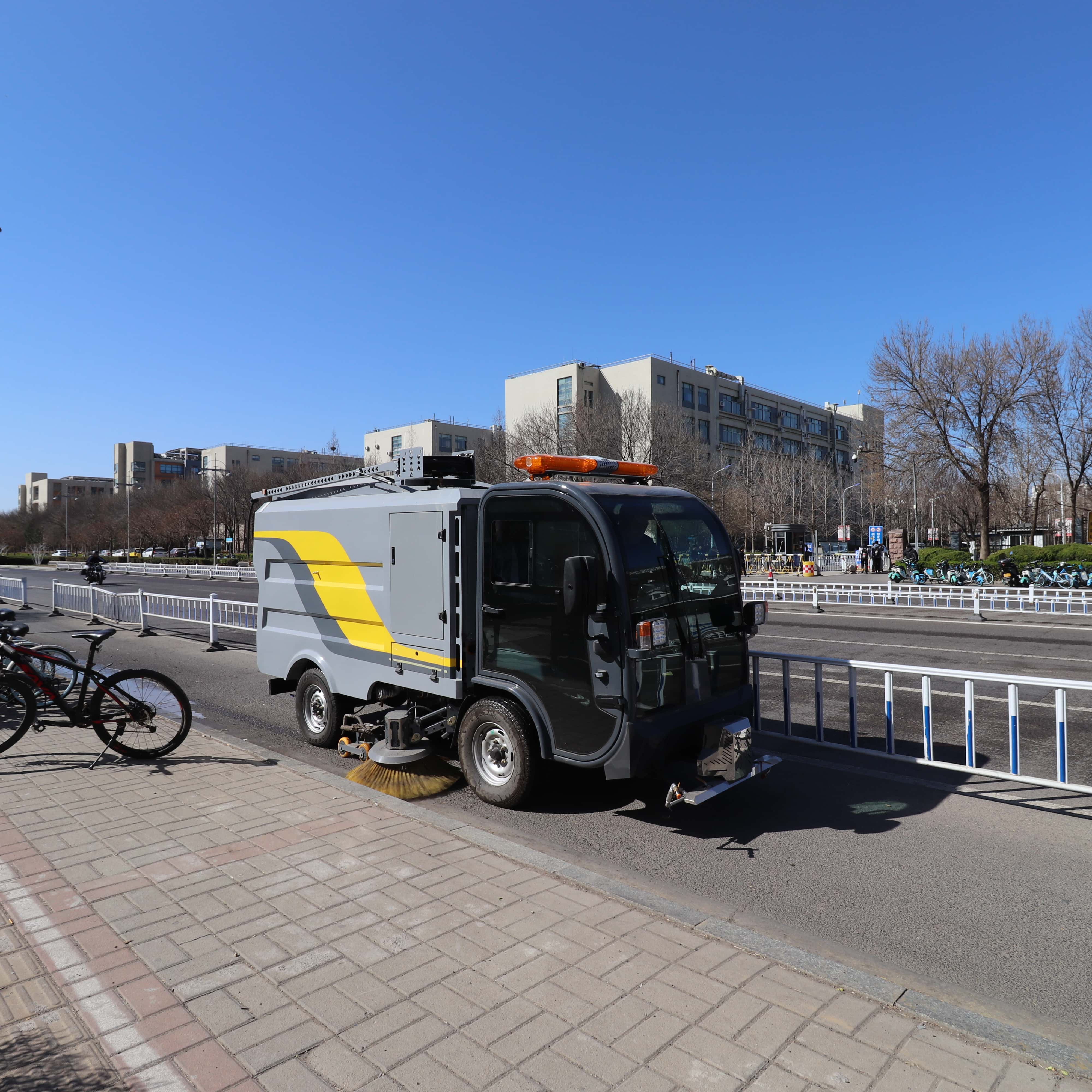

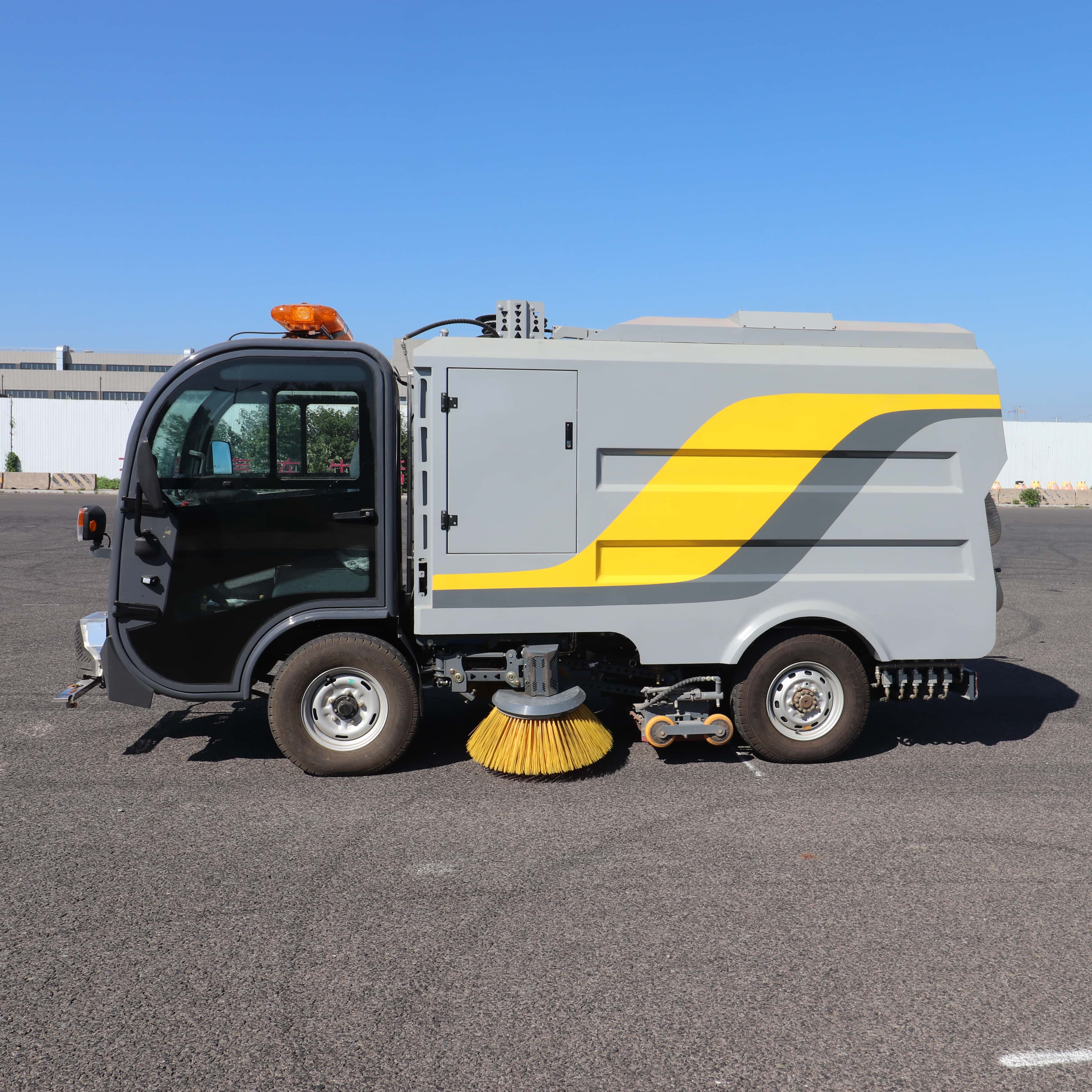

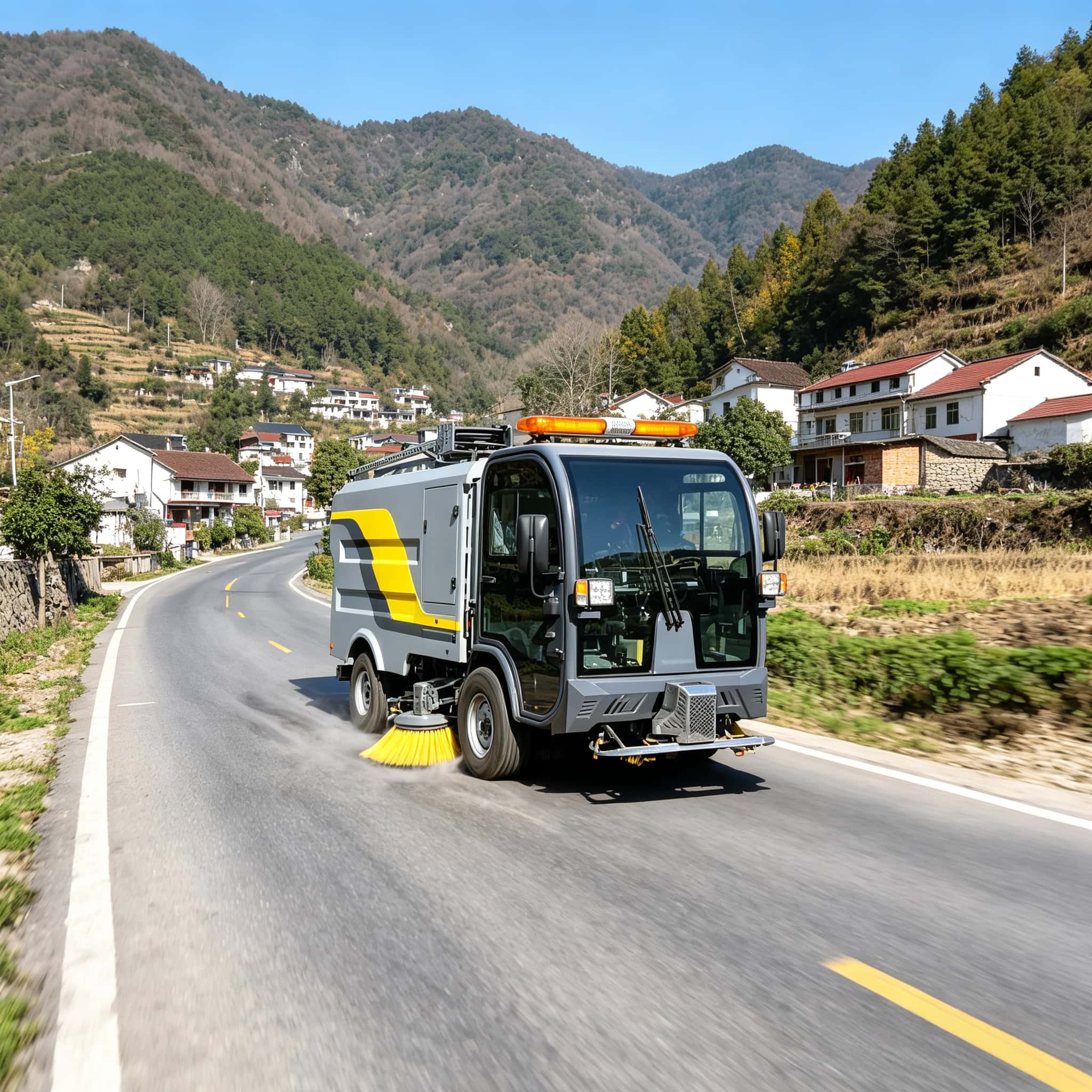

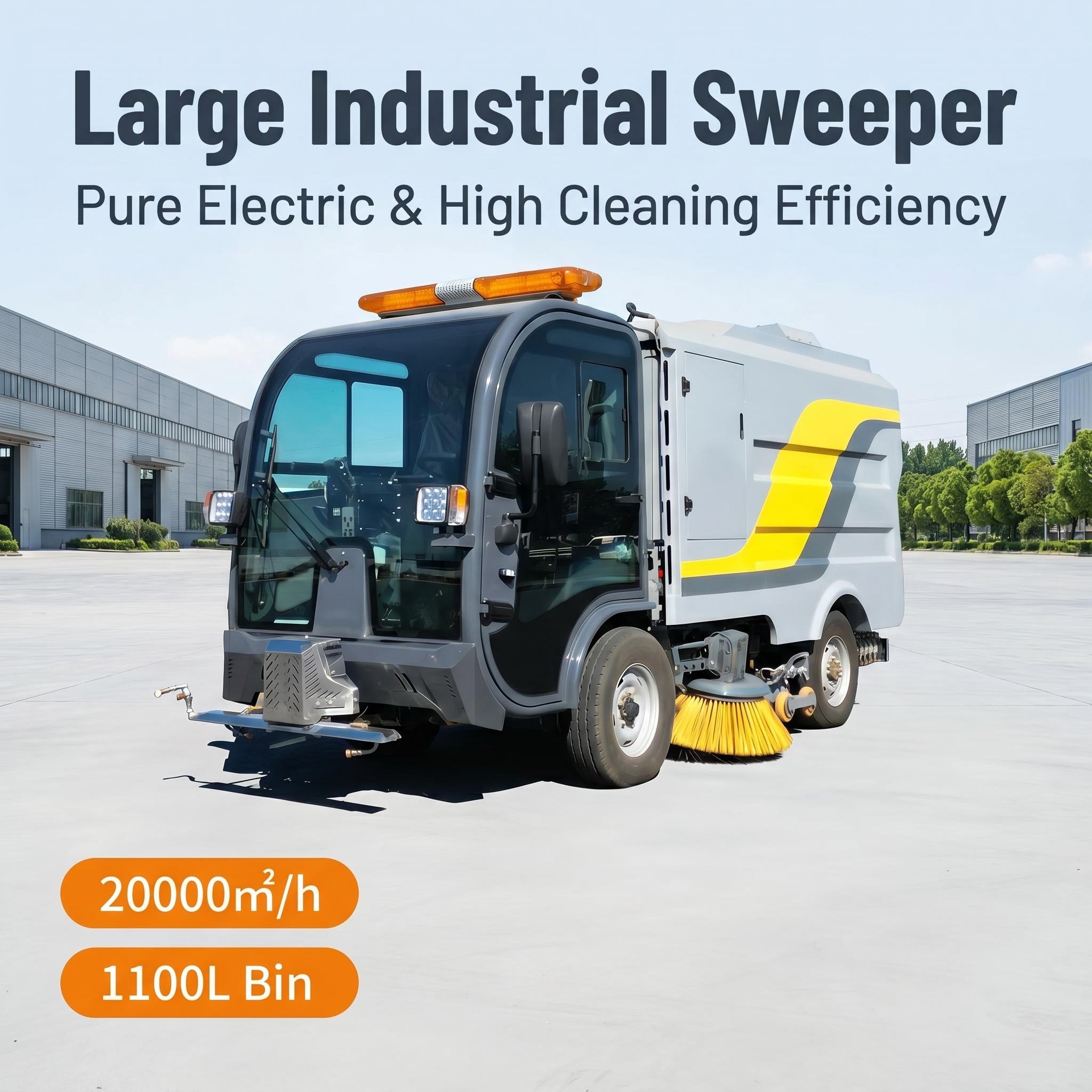

Large industrial road sweeper CS60

Pure Electric, Cost-Effective

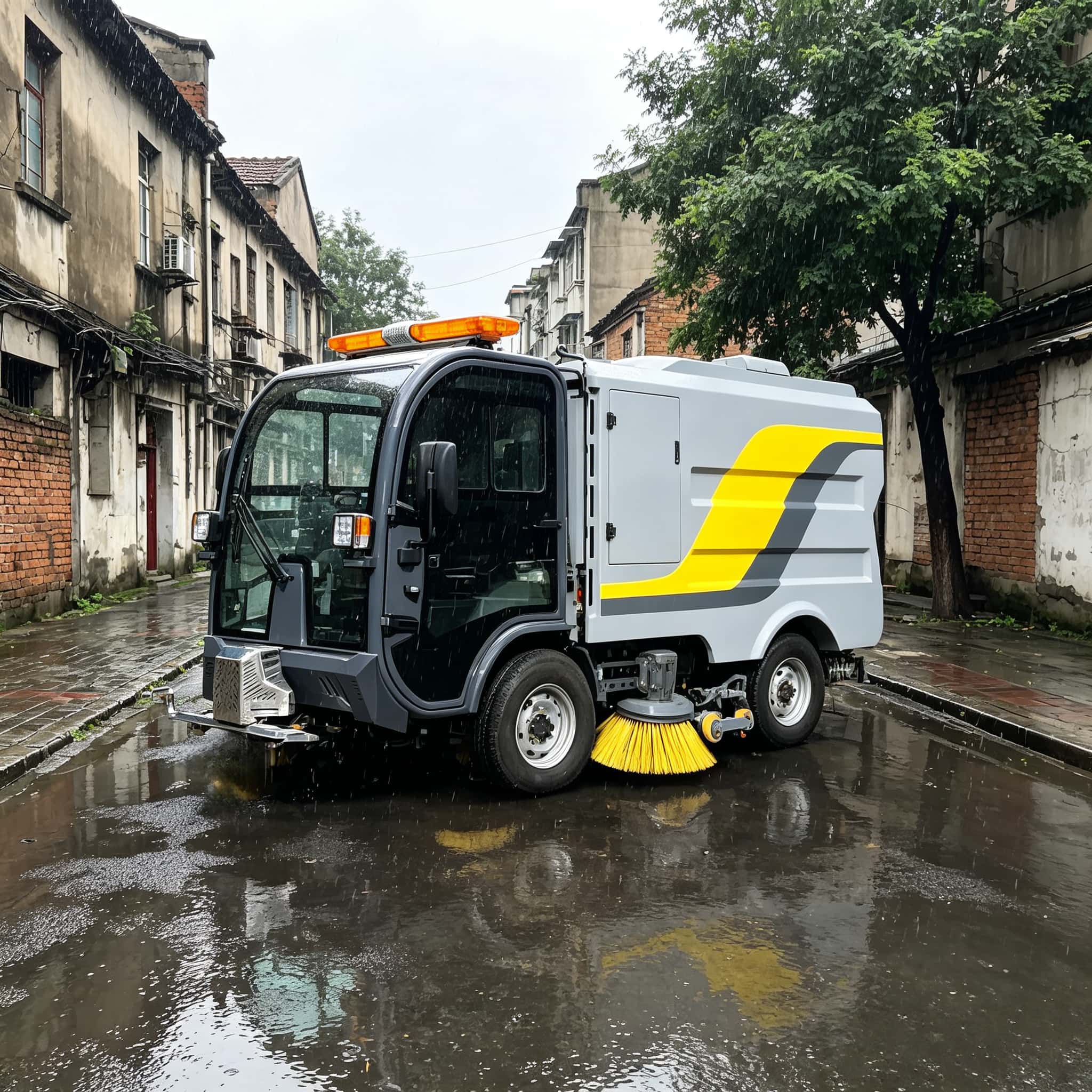

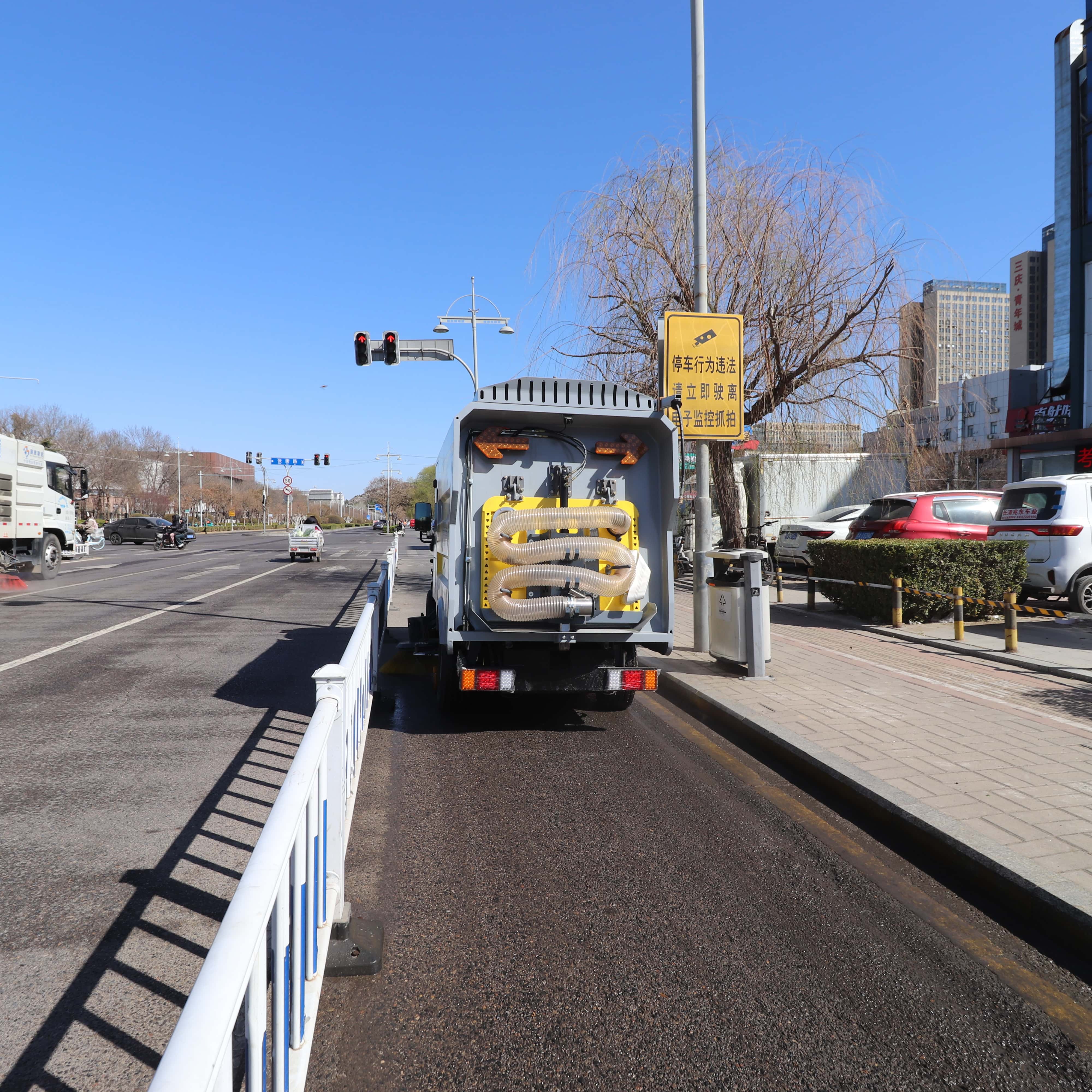

Capable of operating in narrow roads, alleys, sidewalks, parks, and other areas inaccessible to large vehicles.

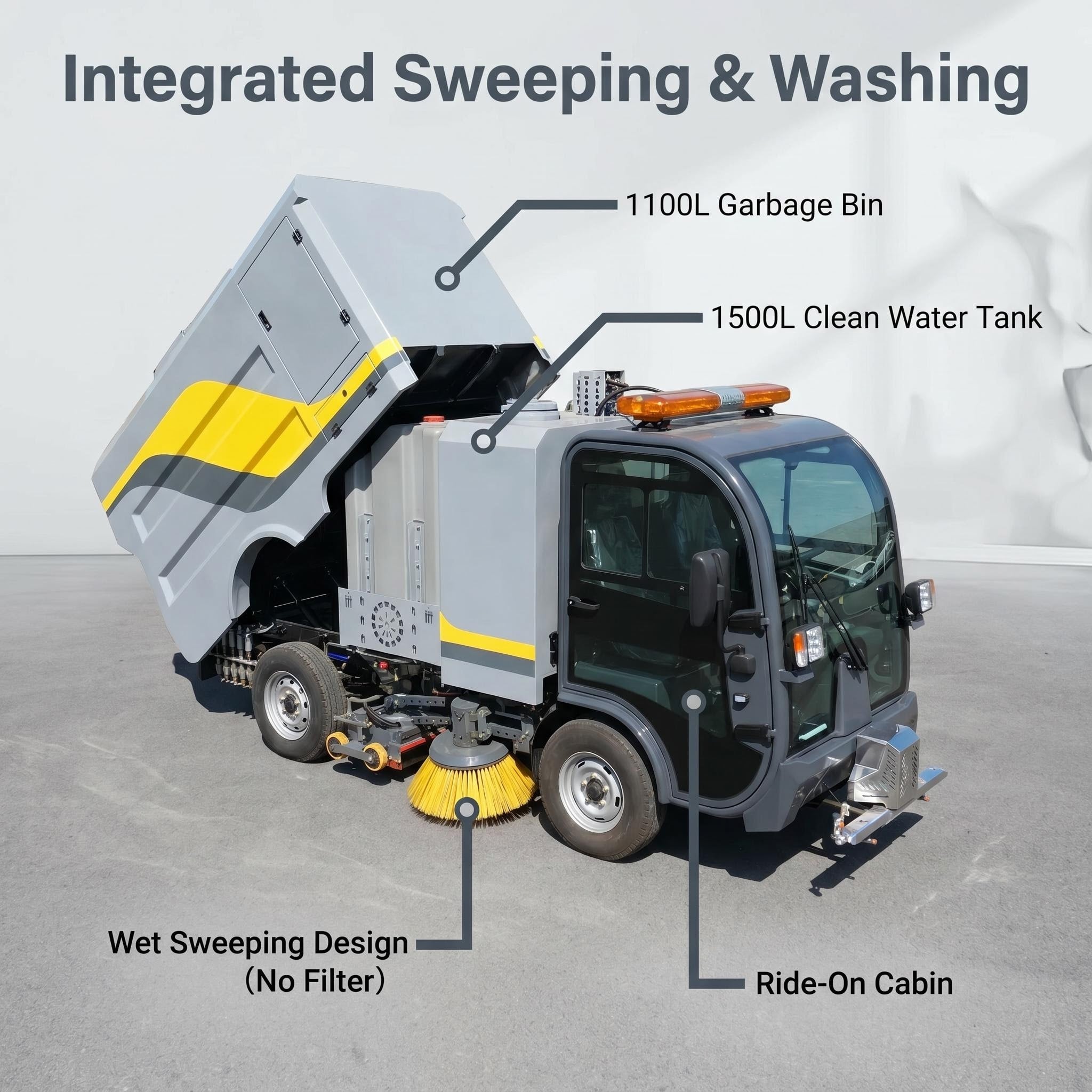

Integrated Sweeping & Washing, Multi-Functional

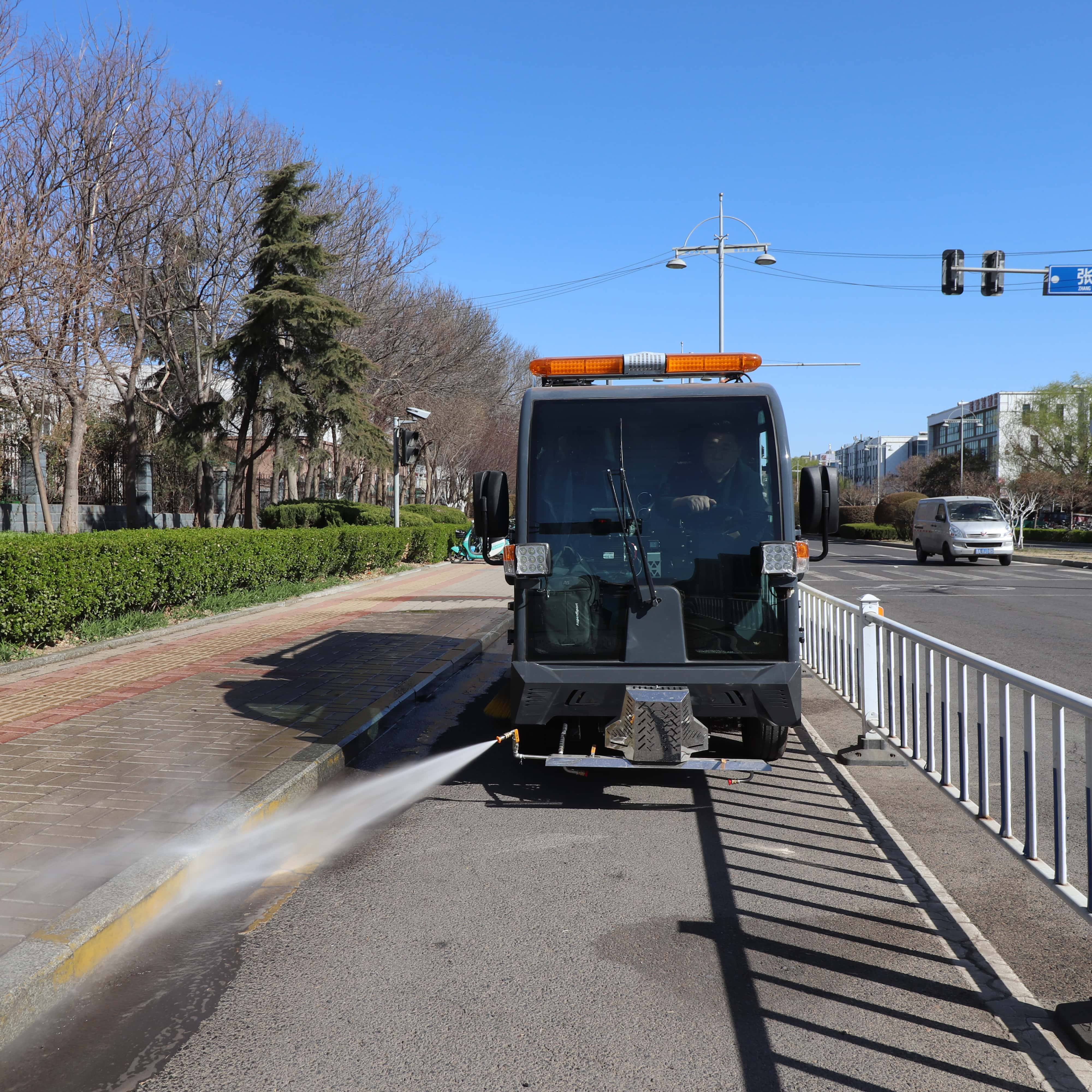

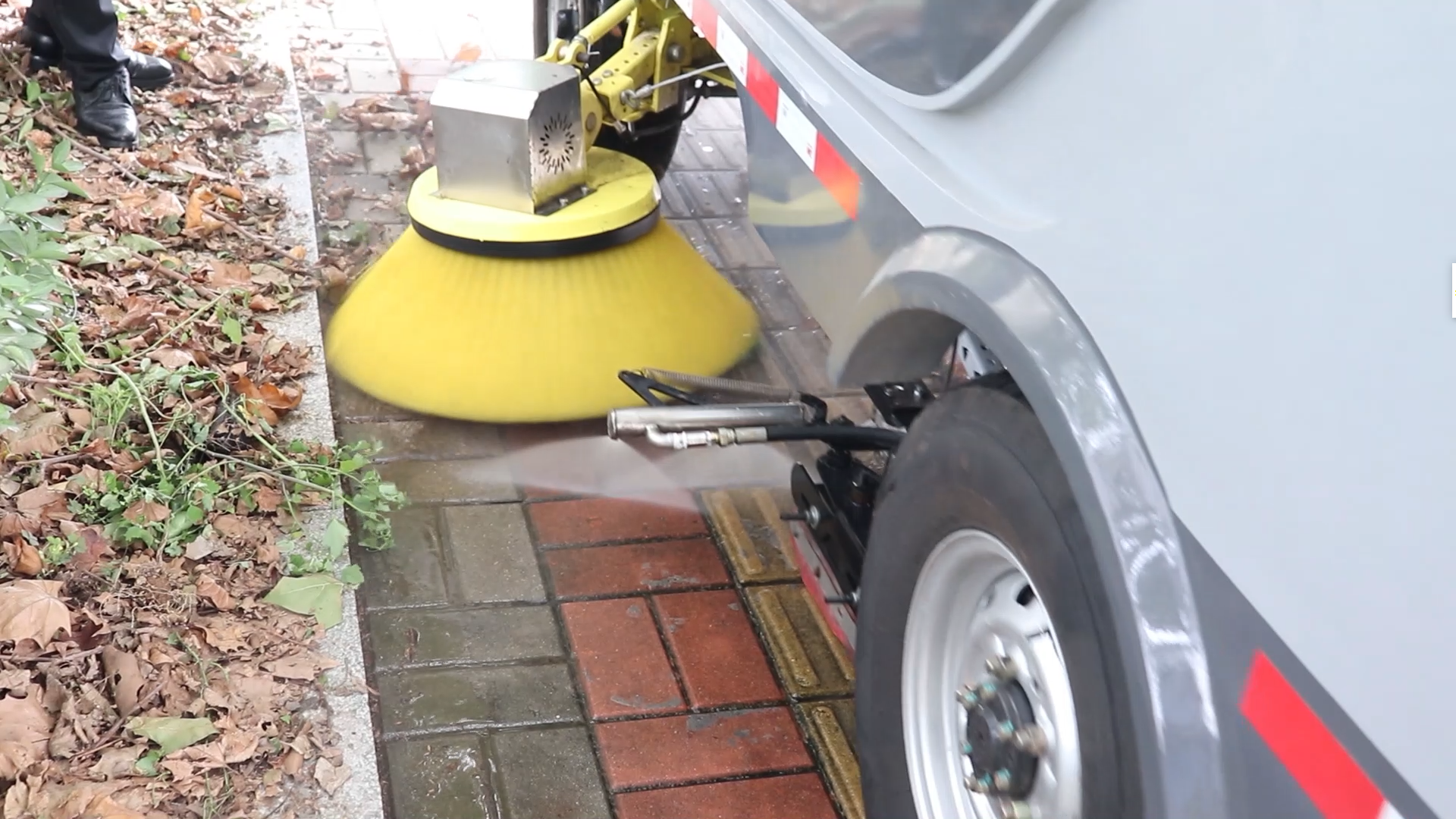

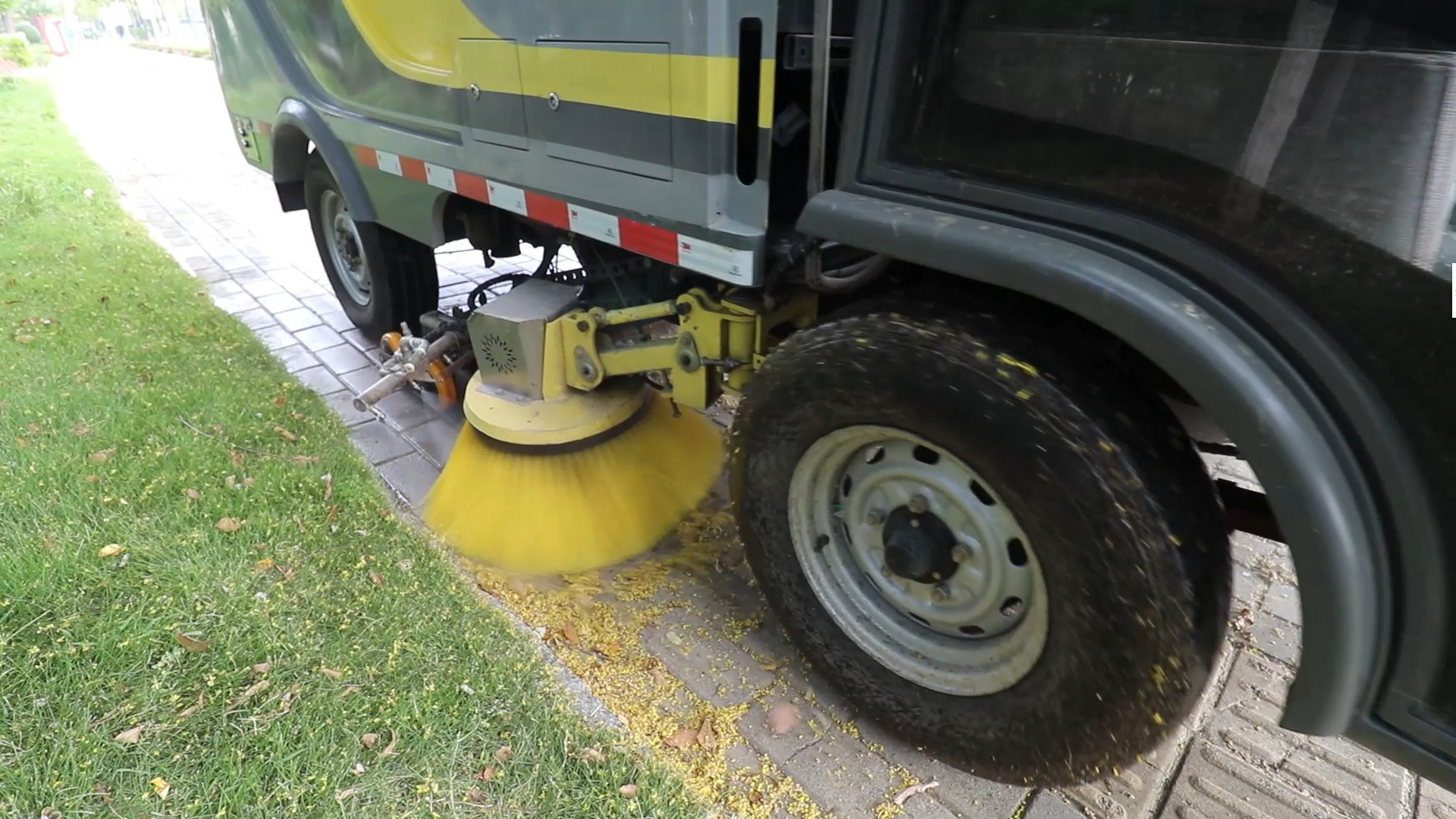

Covers road sweeping, road washing, curb cleaning, waste water recovery, and high-pressure rinsing.

Product Description
Pure Electric, Cost-Effective

Capable of operating in narrow roads, alleys, sidewalks, parks, and other areas inaccessible to large vehicles.

Integrated Sweeping & Washing, Multi-Functional

Covers road sweeping, road washing, curb cleaning, waste water recovery, and high-pressure rinsing.

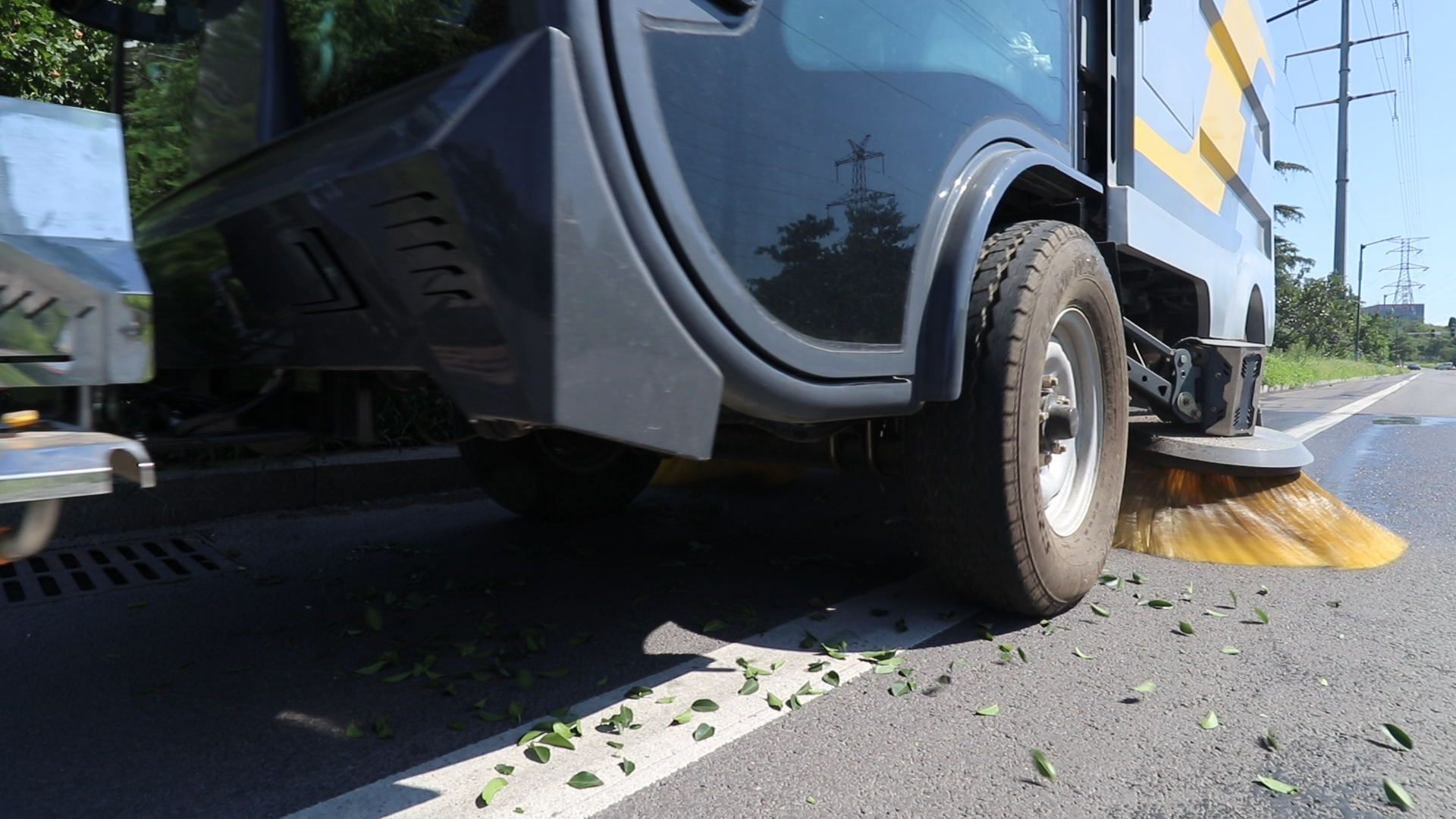

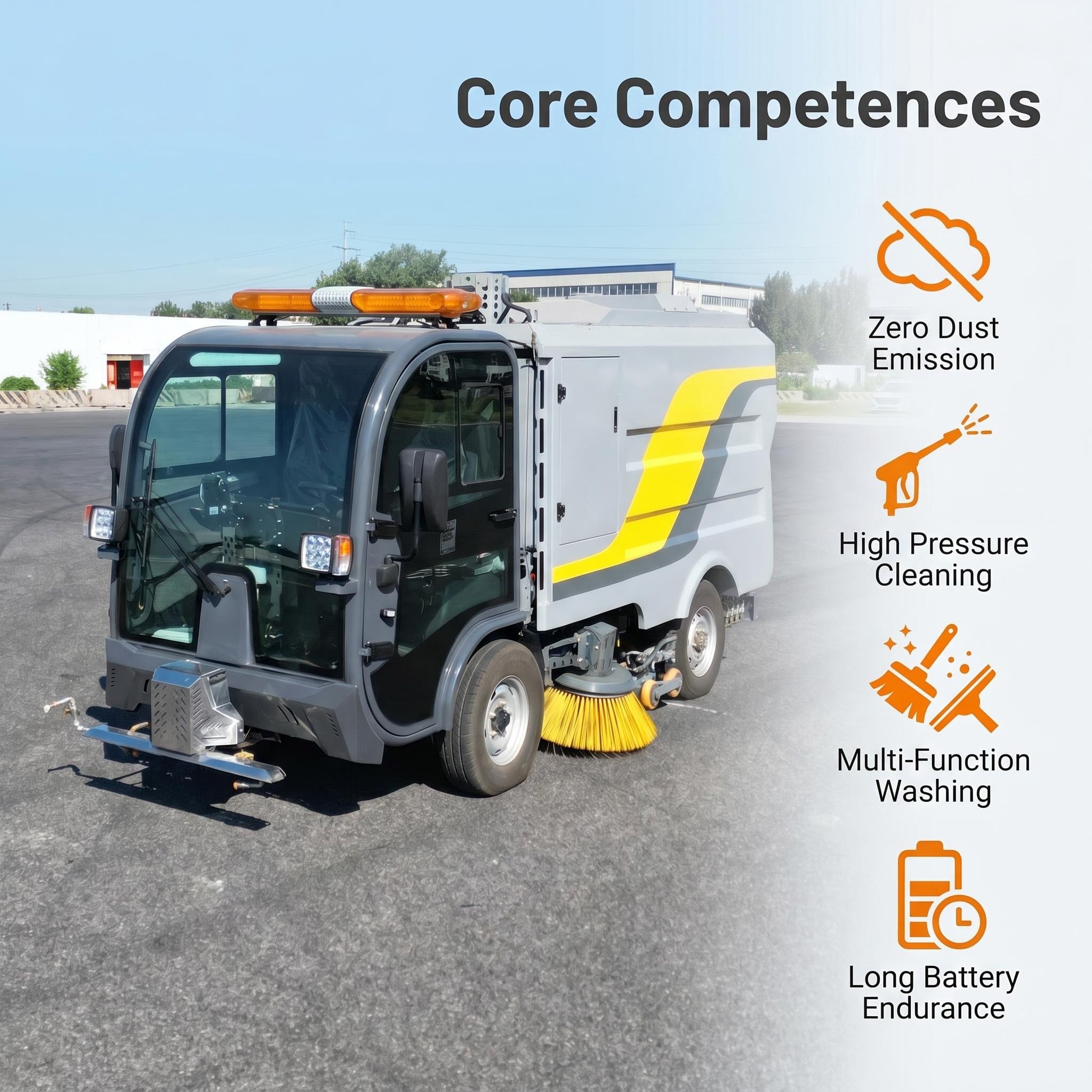

Combined Dry & Wet Sweeping, Dust-Free & Eco-Friendly

Wet sweeping mode eliminates traditional dry-sweeping dust and reduces the need for frequent filter replacements.

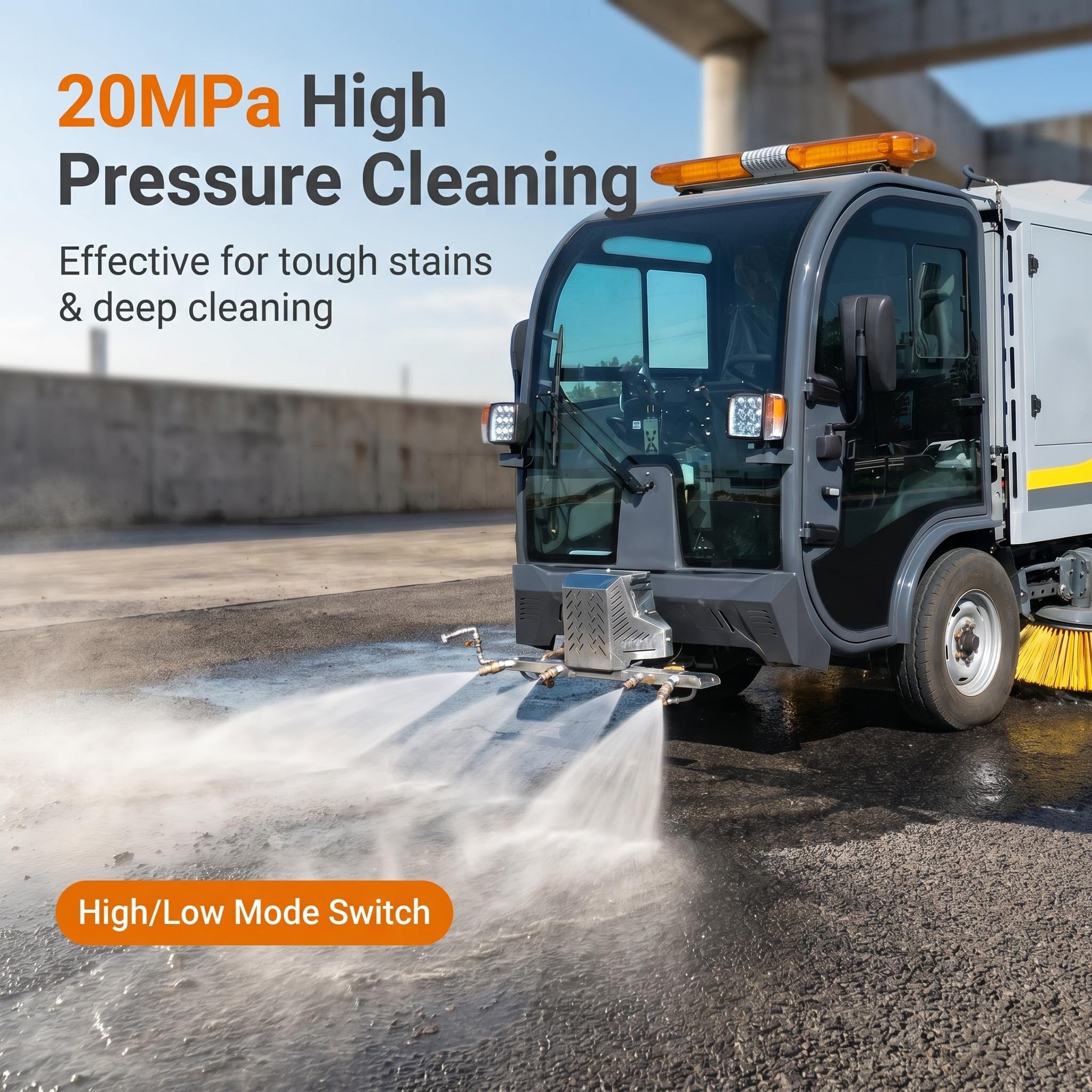

Dual-Mode High/Low Pressure, Extended Endurance

High-pressure mode: 40 mins of operation | Low-pressure mode: 70 mins of operation. Selectable modes for optimal power efficiency.

Lithium Iron Phosphate Battery, Safe & Reliable

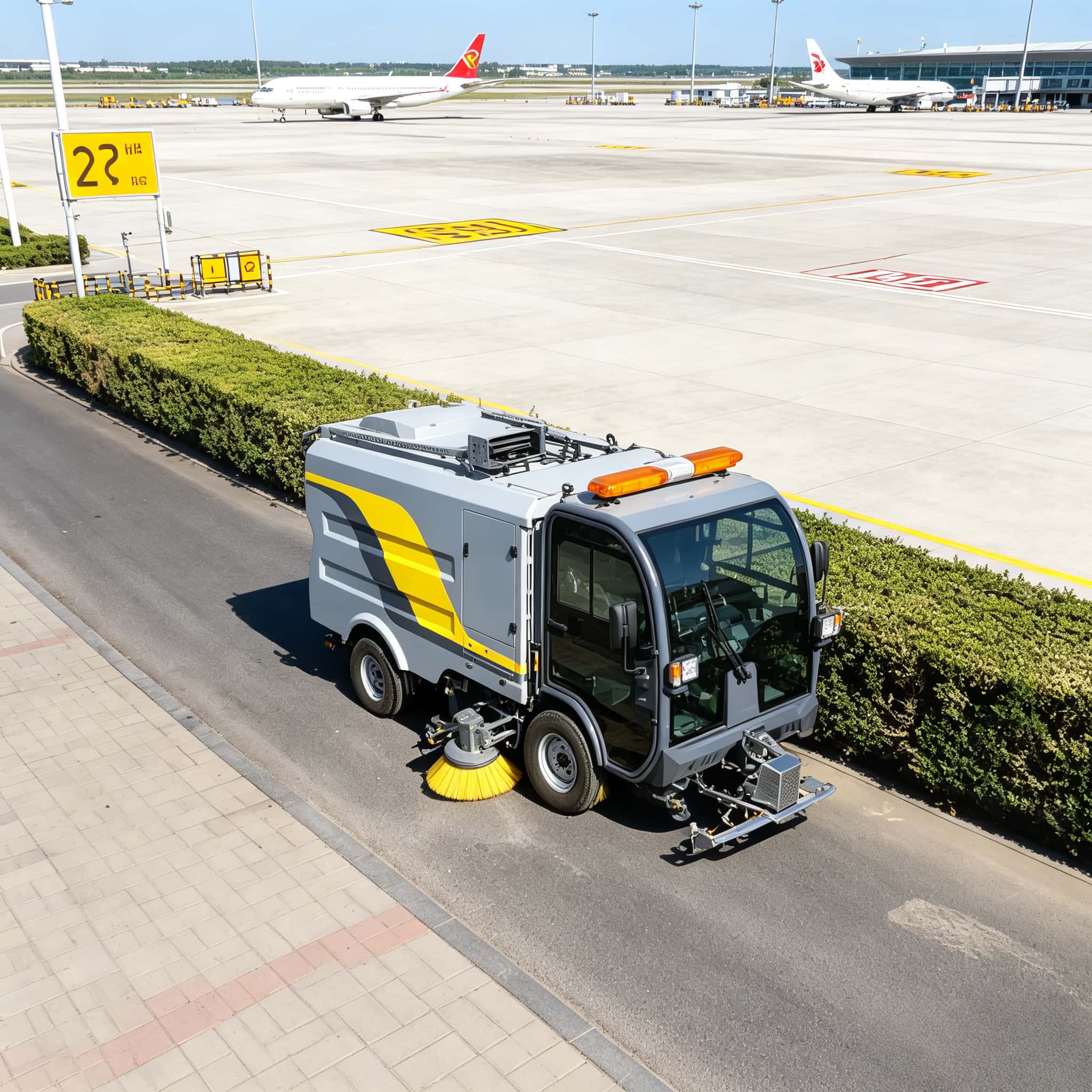

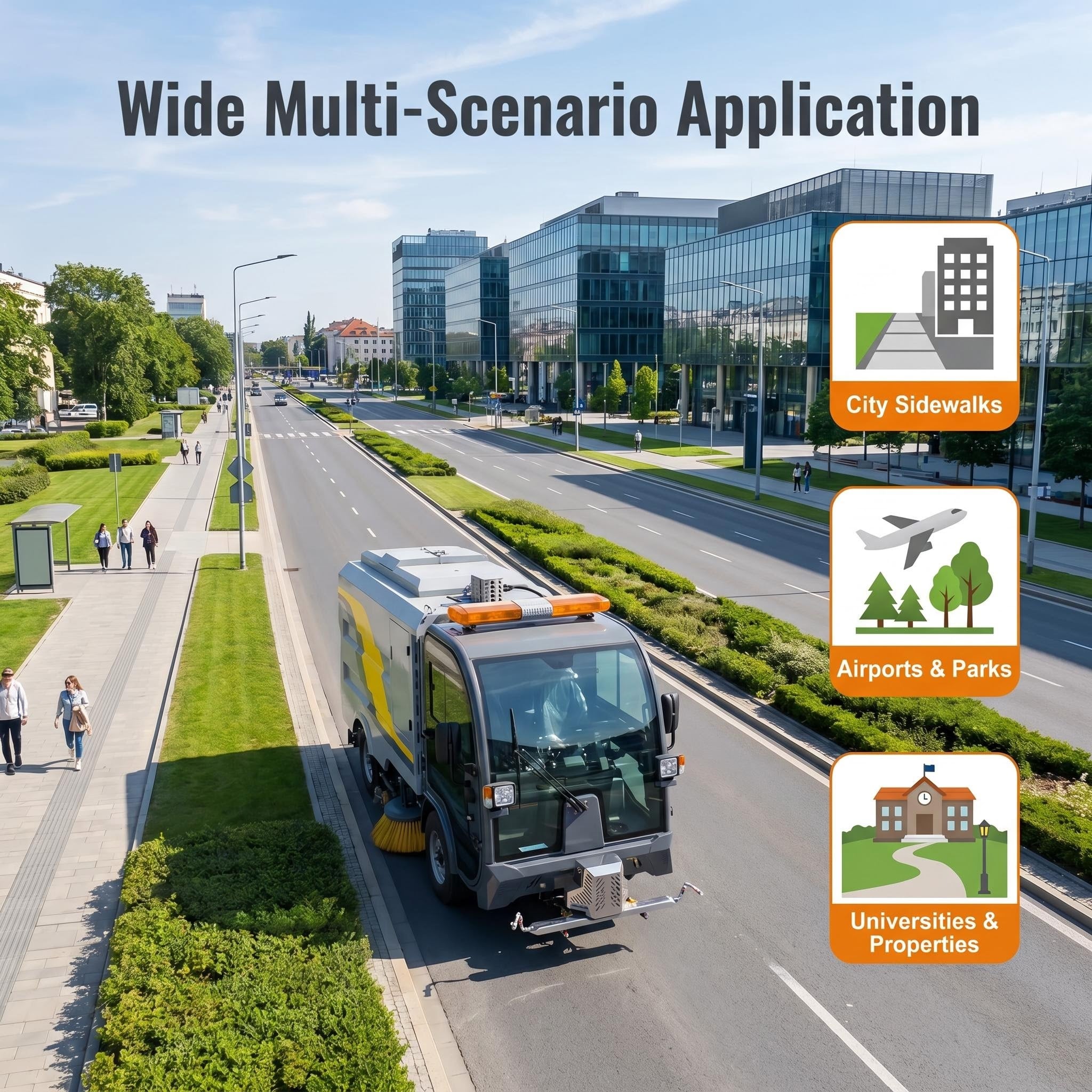

Stable endurance, ideal for long-term cleaning in airports, universities, properties, parks, and more.

High Efficiency, Superior Cleaning, Low Cost

More efficient, cleaner, and easier to maintain than traditional small sweepers.

Product Model CS60
Project Name	Technical Specifications	Project Name	Technical Specifications
Rated Load Capacity	2 people	Maximum Flushing Pressure	20MPa
Battery Level	72V600AH	Garbage Bin Capacity	1100L
Continuous Homework Duration	3-4h	Clean Water Tank	1500L
Drive Motor Power	7.5KW	Sweeping Width	2.3m
Mmaximum Speed	30km/h	Cleaning Efficiency	20000㎡/h

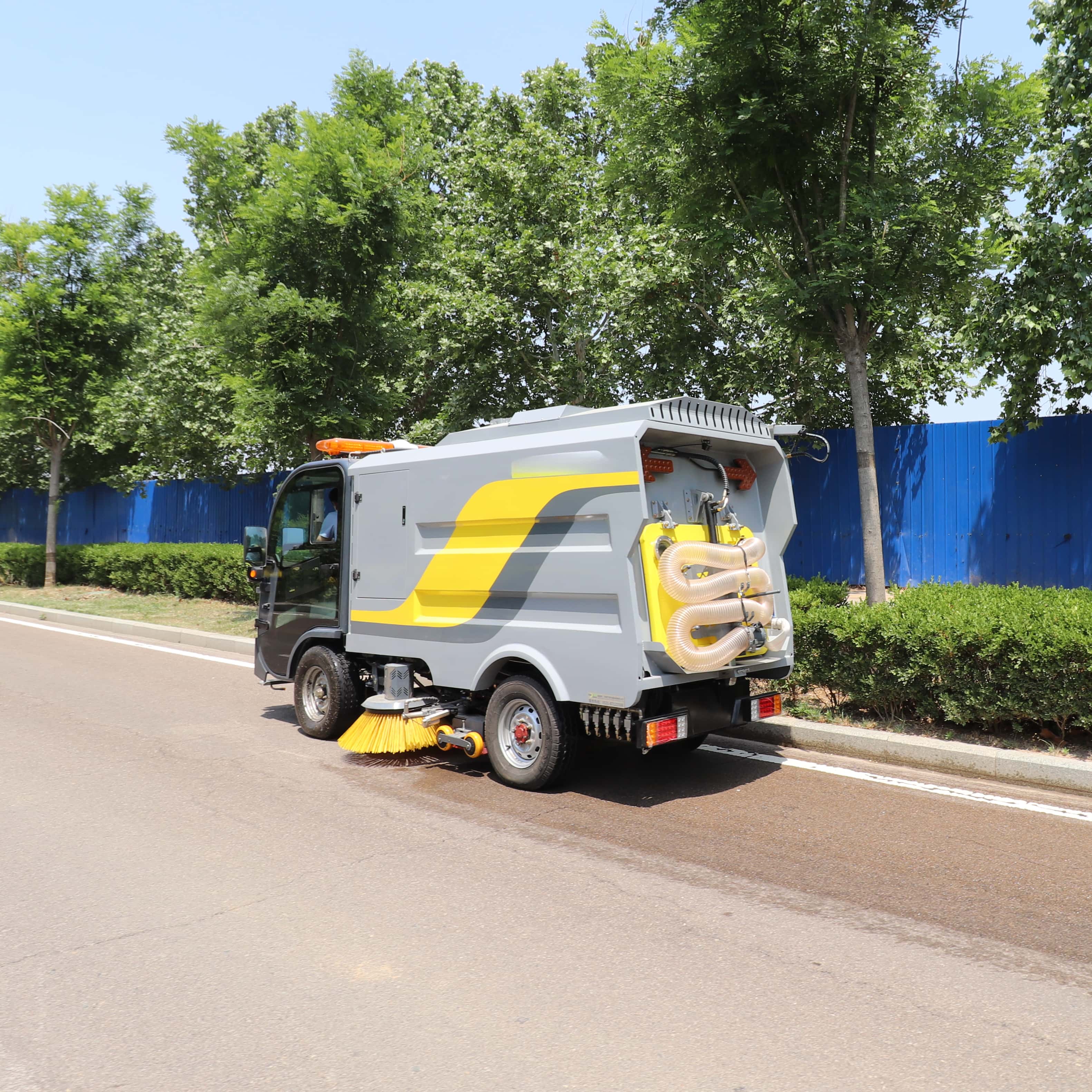

Braking Distance	≥5.5m（v=20km/h）	Tube Length Of Coiling Device	8m
Minimum Turning Radius	6m	Wheelbase	2200mm
Charging Method	Fast charging/slow charging	Curb Weight	2800kg

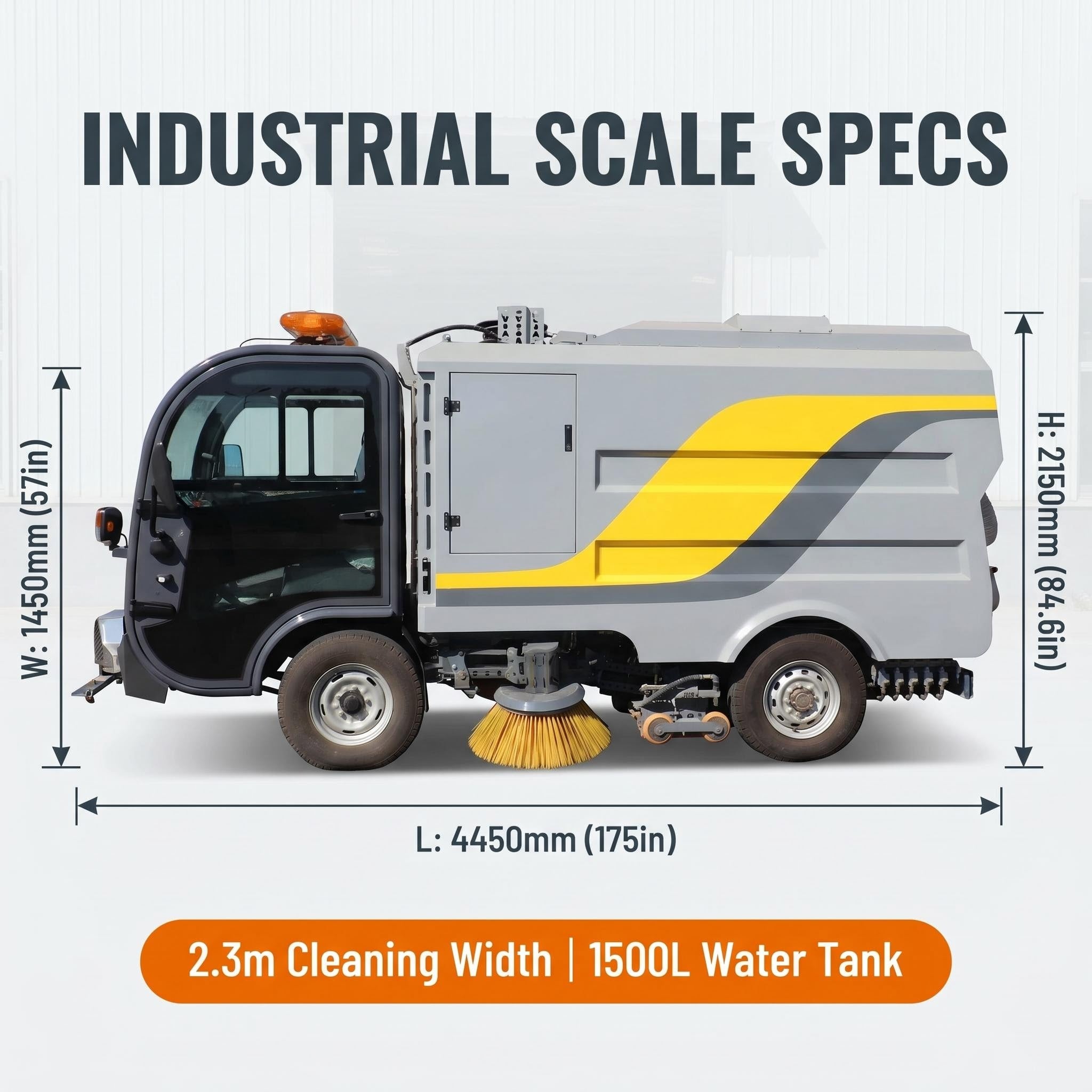

Steering Mode	ESP electronic power steering system	Overall Vehicle Dimensions	4450×1450×2150mm
Brake System	Vacuum assisted hydraulic brake, mechanical parking brake device
